360-Degree Rotation Fixed-Column Jib Crane Engine Motor Pump Customizable Boom Length for Sale

Name: 360Degree Rotation FixedColumn Jib Crane Engine Motor Pump Customizable Boom Length for Sale
Brand: Zehua
Price: 2 USD

Buy cheap 360-Degree Rotation Fixed-Column Jib Crane Engine Motor Pump Customizable Boom Length for Sale product

Rated Lifting Moment : customized

Place of Origin : Henan, China

Brand Name : Zehua

Color : Customer's Requirements

Certification : CE ISO

Rated Loading Capacity : customized

Max. Lifting Height : customized

Span : customized

Video outgoing-inspection : Provided

Product name : Column Mounted Slewing Jib Crane

Lifting mechanism : Wire Rope Electric Hoist

Make : Zehua

Warranty : 1 Year

Main Electrical Part : Schneider

Rotating speed : 0.5-0.8r/min

Weight (KG) : 1000 kg

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

After-sales Service Provided : After-sales Service

Machinery Test Report : Provided

MOQ : 1 set

Application : Factory/Warehouse/Workshop

Control method : Ground Control+ Remote Control (customized)

Price : $2,500 / set

Rotation angle : 180 /270 /360/Customized

Working Duty : A3-A5

Contact Now

360-Degree Rotation Fixed-Column Jib Crane Engine Motor Pump Customizable Boom Length for Sale

Jib Crane

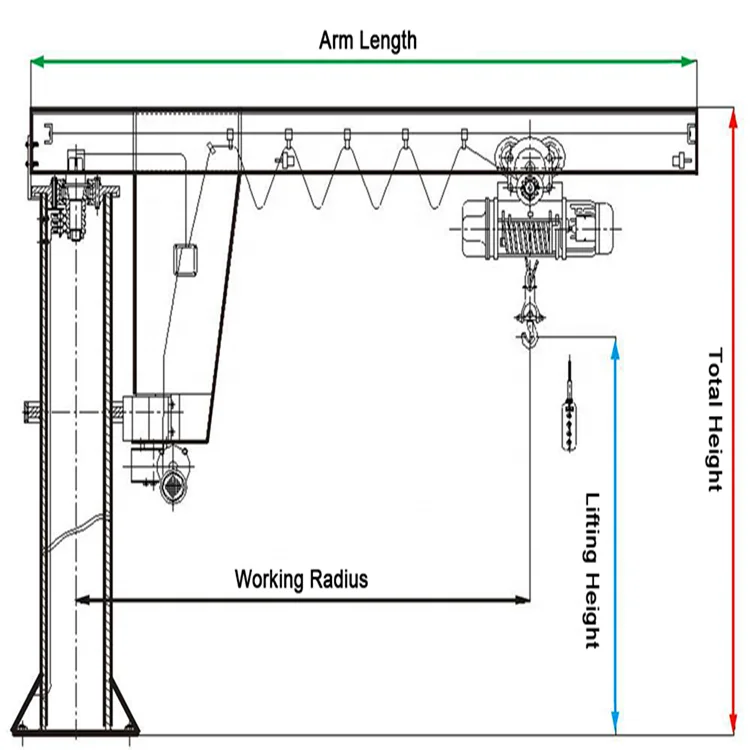

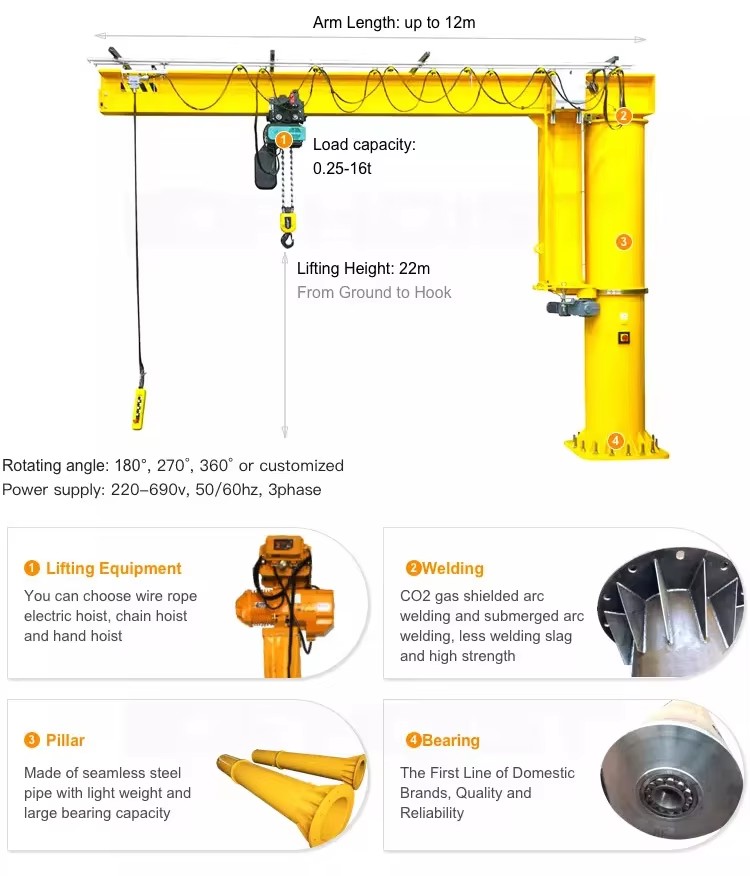

Free Standing Column Jib Crane
•Column cantilever crane is a kind of light and small lifting equipment. It has the advantages of novel structure, high efficiency,energy saving, time and labor saving, reasonable, simple, convenient operation, flexible rotation, and large working space.
•Random operation in the three-dimensional space, in short-distance and intensive transportation occasions, shows its superiority than other conventional lifting equipment, and is an energy-saving and efficient material lifting equipment. It can be widely used in fixed places such as workshop production lines, warehouses, and docks.

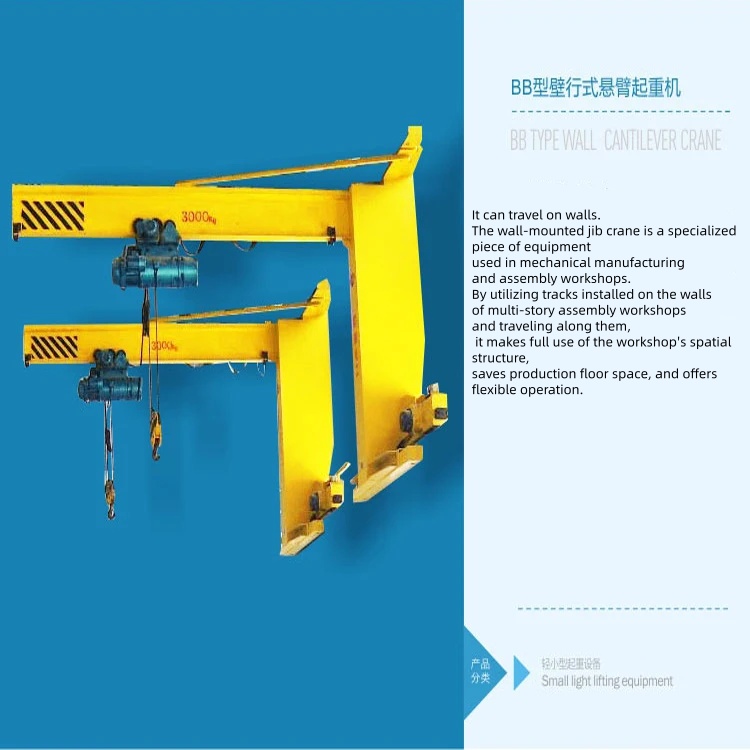

Wall Travelling Jib Crane
•The wall-mounted cantilever crane is a special crane for machinery manufacturing and assembly workshops. It uses the rails arranged on the walls of the multi-layer assembly workshop to walk on the walls, which can make full use of the space structure of the workshop and save the production space. The operation is flexible and convenient.
•It provides fluent moving of materials on an every level of the workshop.
•Equipped by wire rope hoists with low headroom or chain hoists series.

contact us for more information！

Core Advantages

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

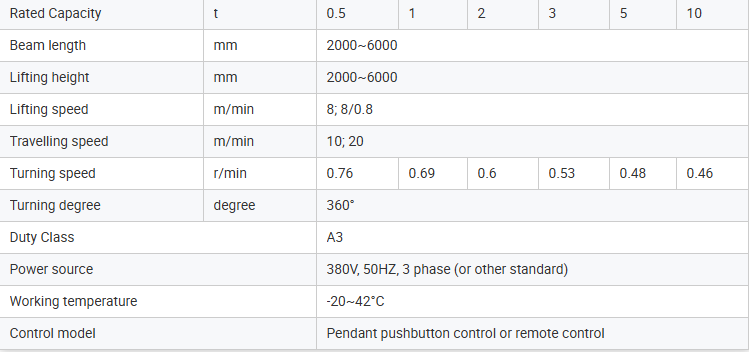

Product Paramenters

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.
