Zehua 80 Ton Straddle Carrier Price Rubber Tyre Gantry Crane 40ton

Name: Zehua 80 Ton Straddle Carrier Price Rubber Tyre Gantry Crane 40ton
Brand: Zehua
Price: 89 USD

Buy cheap Zehua 80 Ton Straddle Carrier Price Rubber Tyre Gantry Crane 40ton product

Lifting height : 6m 9m 12m 16m 30m

Lifting Capacity : 10~1500Ton

Video outgoing-inspection : Provided

Application : Container

Weight (KG) : 10000 kg

Crane feature : High Efficiency

Girder Type : Double Box Girder

Machinery Test Report : Provided

Rated Loading Capacity : 40 ton

Span : 25m

Control Method : Ground Control+ Remote Control (customized)

Power Source : 3 Phase 380V 50hz / Custmized

Warranty : 1 Year

Product name : Zehua 80 Ton Straddle Carrier Price Rubber Tyre Gantry Crane 40ton

Main electrical parts : Schneider Brand

Core Components : PLC, Engine, Gearbox, Bearing, Motor, Pressure Vessel, Gear, Pump

MOQ : 1 set

Brand Name : Zehua

Work Duty : A5-A8

Keywords : Rubber Wheel container straddle carrier

Price : $89,000 / set

Max. Lifting Height : 25 meters

Place of Origin : Henan, China

Contact Now

Zehua 80 Ton Straddle Carrier Price Rubber Tyre Gantry Crane 40ton

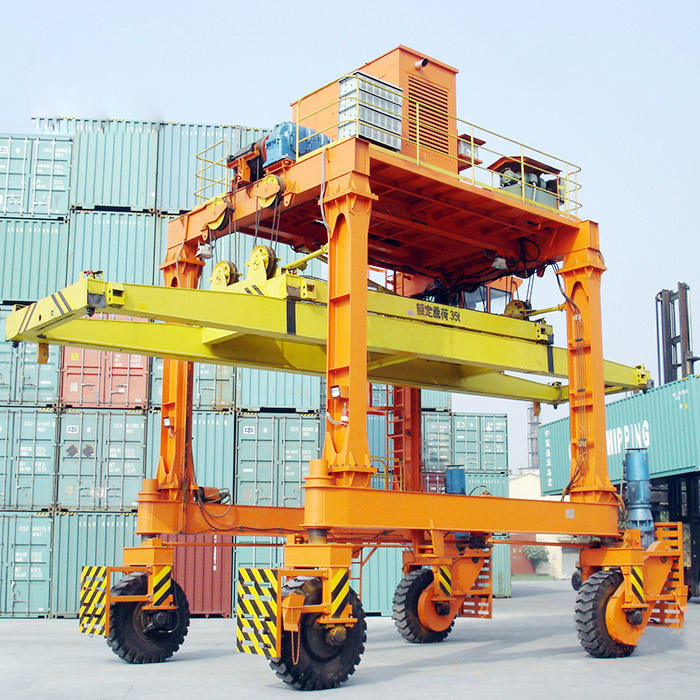

Straddle Carrier

The straddle carrier utilizes advanced sensing and monitoring systems, enabling it to independently perform automated identification, positioning, movement, and handling of heavy containers. It features high lifting synchronization accuracy, continuously adjustable speed, and strong overload capacity, effectively enhancing the safety and efficiency of logistics operations. Compared to the 3% climbing grade of traditional rubber-tired gantry cranes, the new-generation straddle carrier can achieve a full-load climb on a steep 10% gradient, demonstrating exceptional capability.

contact us for more information！

Advantage:

1. Reasonable structure and favorable performance.
2. Smooth starting and stopping.
3. Safe and reliable traveling, long life.
4. Low noise, commodious cabin with good view.
5. High quality automatic welding and NDT inspection
6. Crane drive: IP54 or IP44, level F insulation
7. Especially suitable for the container lifting.
8. Designed according to your requirement.

Product Paramenters

Lifting Capacity (t)			10	16	20/10	32/10	36/16	50/10
Span (m)			18-35
Lifting Height (m)			10-13
Duty Class			A5-A8
Speed (m/min)	Lifting	8.5	7.9	7.2/10.4	7.2/10.4	7.8/10.5	6/10.4
		Trolley	43.8	44.5	44.5	41.9	41.9	38.13
		Crane	40	38	38	40	40	38
Motor	Lifting	YZR180L-6/17	YZR225M-8/26	YZR225M-8/26 YZR200L-6/26	YZR280S-10/42 YZR200L-6/26	YZR280M-10/55 YZR225M-6/34	YZR280M-10/55 YZR200L-6/26
		Trolley	YZR132M1- 6/2.5*2	YZR132M2- 6/4*2	YZR132M2- 6/4*2	YZR132M1- 6/4*2	YZR132M1- 6/6.3*2	YZR132M1- 6/6.3*2
		Crane	YZR160L-6/13*2	YZR160L-6/132 YZR160M1- 6/6.34	YZR160L-6/132 YZR160M2- 6/8.54	YZR160M2- 6/8.5*4	YZR160L-6/134 YZR160M2- 6/8.54	YZR160L-6/13*4
Weight (t)	Trolley	9	9.5	12	16	18	24
Weight (t)	Weight (t)	Total	63.2-100	78-106	79-120	95-108	106-155	195
Wheel Pressure (KN)			225-295	255-373	208-289	324-334	314-363	452
Steel Track			43kg/m	50kg/m
Power Source			3-phase A.C 380V 50HZ (As your requirement)

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.

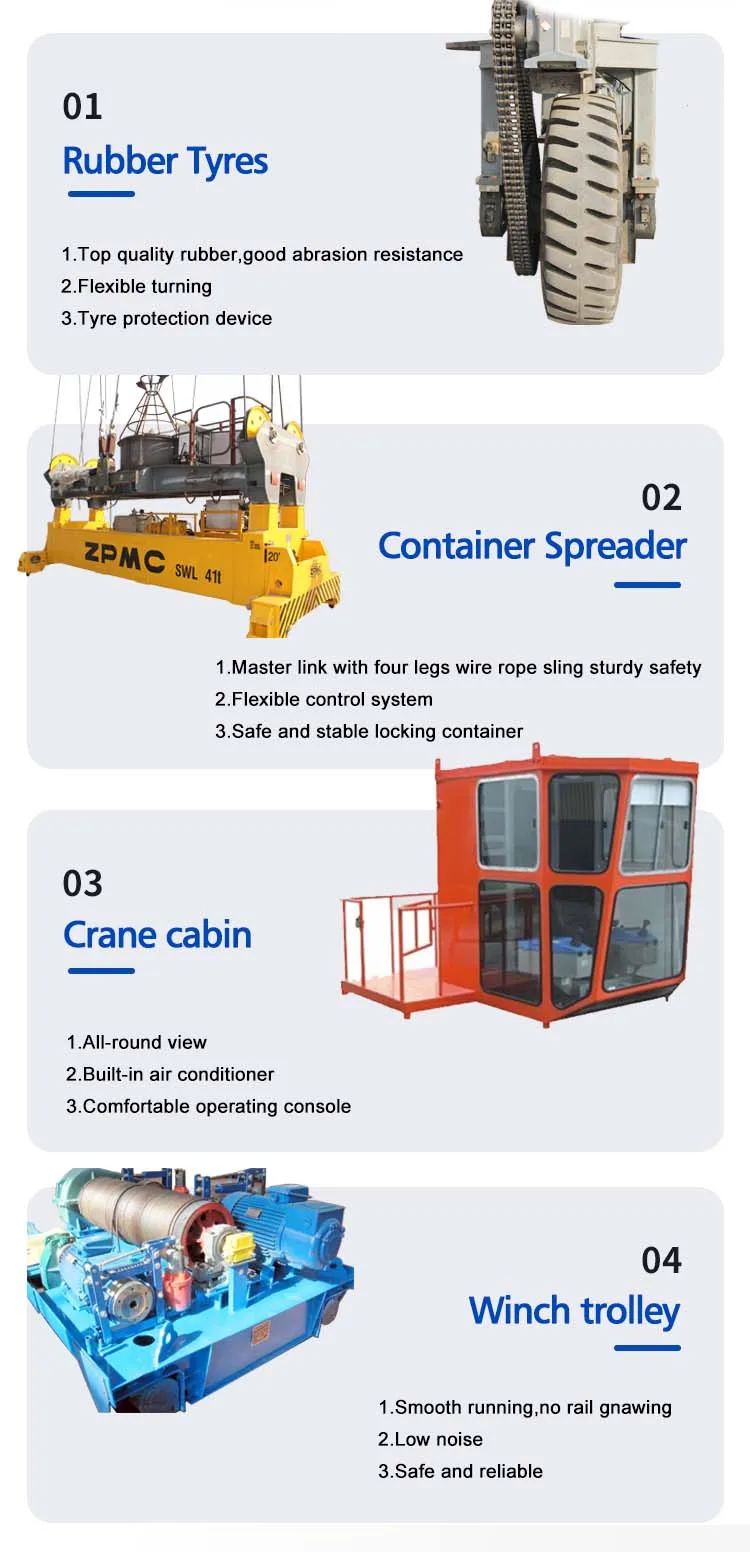

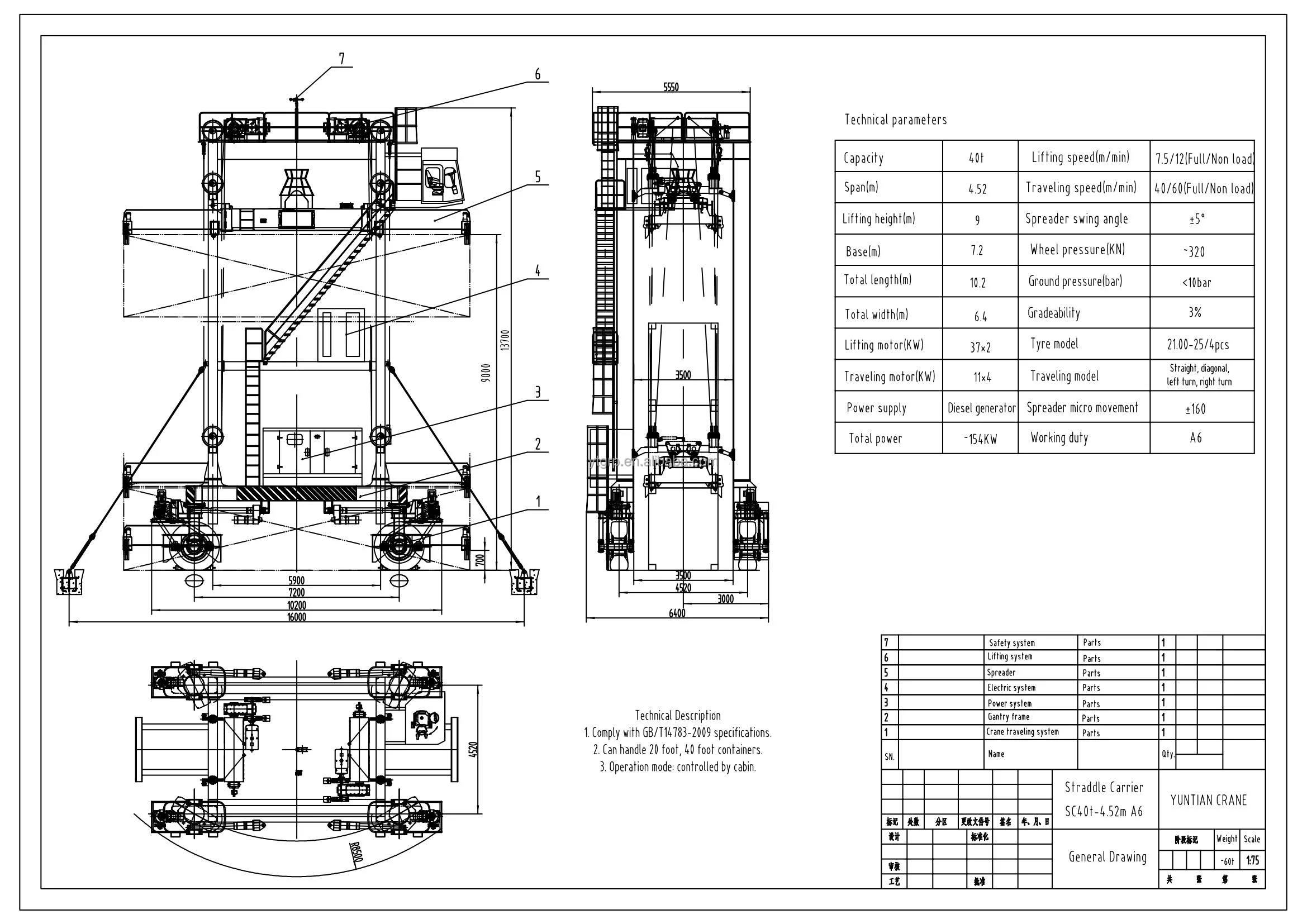

Zehua 80 Ton Straddle Carrier Price Rubber Tyre Gantry Crane 40ton Images
