Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop

Place of Origin : Henan, China

Certification : CE ISO

Price : $35,000 / set

Brand Name : Zehua

Warranty : 1 Year

Span : Customized, Customized

Lifting Capacity : Customized

Lifting height : Customized

After-sales Service Provided : After-sales Service

Working Temperature : MAX 80 Degree

Machinery Test Report : Provided

Power : 50 Hz, 70hz, 60 Hz

Video outgoing-inspection : Provided

Rated Lifting Moment : Customized

Max. Lifting Height : 20 m, Customized

Make : Zehua

Control method : Ground Control+Remote Control+Cabin Control

Max. Lifting Load : Customized

Weight (KG) : 6500 kg(14330.05lb)

Lifting mechanism : Electric Trolley

MOQ : 1 set

Product Name : Heavy Duty Anode Carbon Block Stacking Overhead Crane

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear

Lifting speed : Customized

Contact Now

Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop

Anode Carbon Stacking Overhead Crane

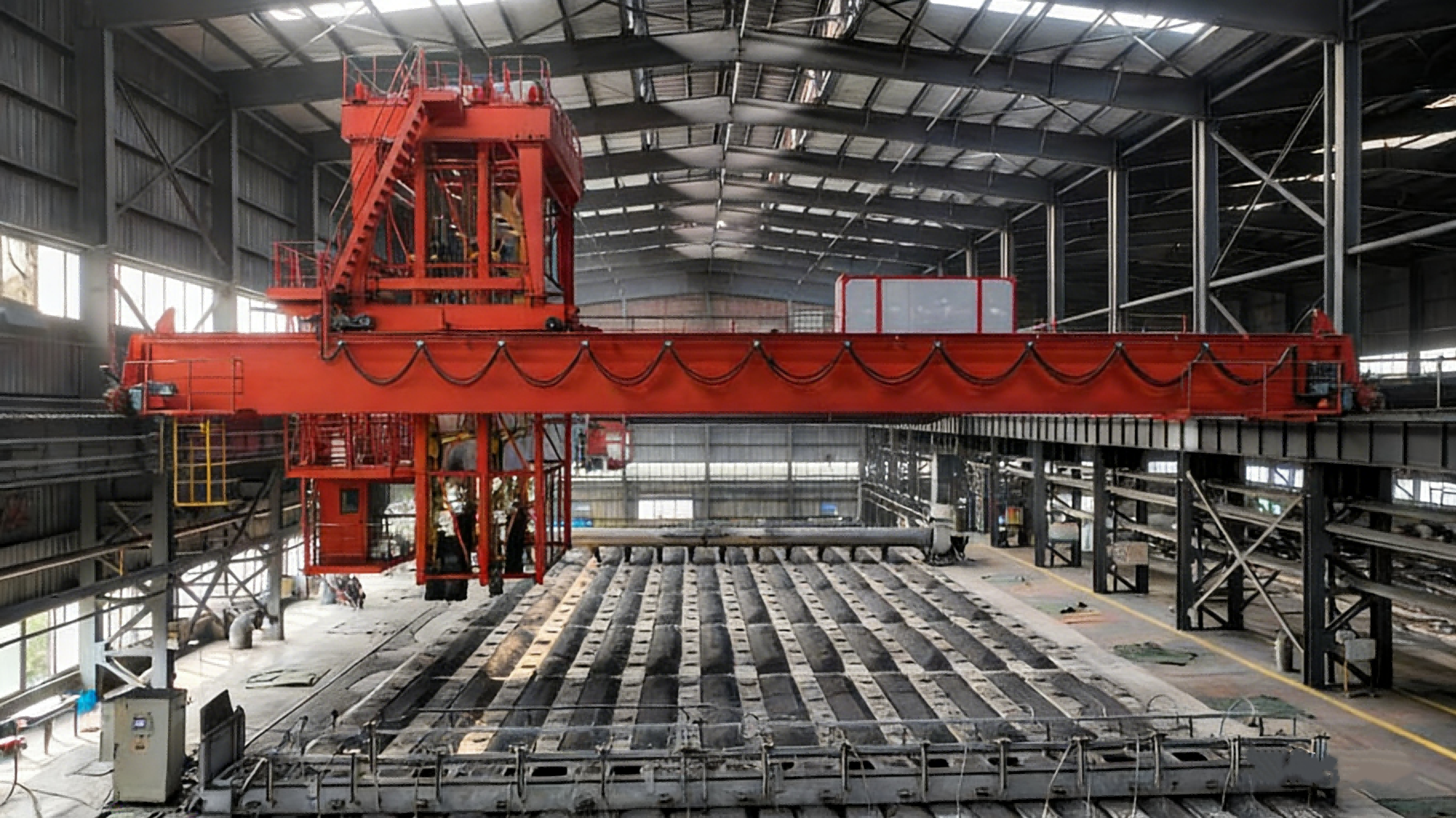

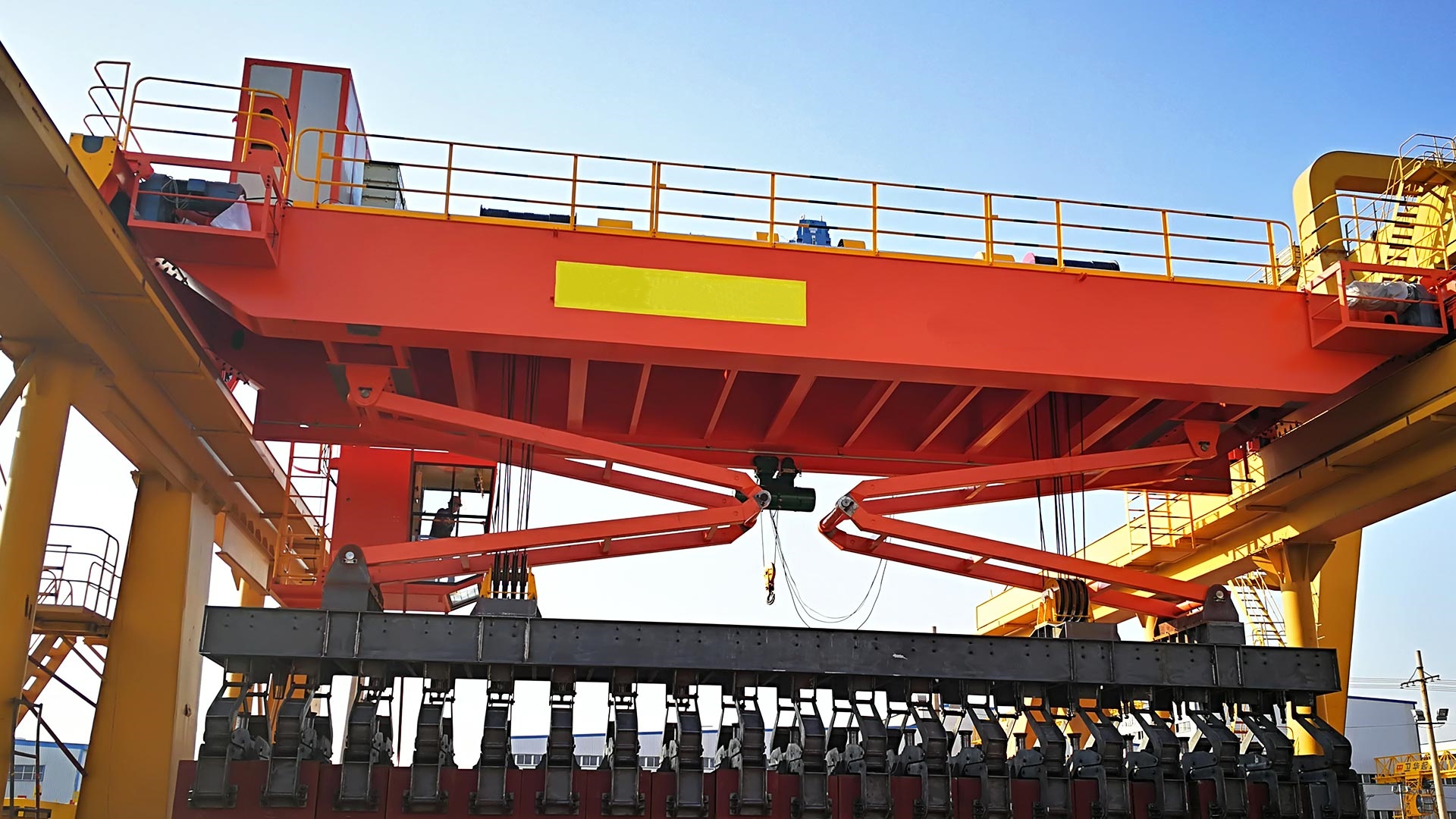

The Anode Carbon Stacking Overhead Crane is specialized transfer equipment used in the carbon block warehouse of carbon plants. It mainly consists of the bridge, bridge traveling mechanism, hoisting mechanism, guiding device, clamp device, control system, and electric hoist. It is used for handling green and baked carbon blocks in the anode carbon block warehouse, as well as for other miscellaneous lifting tasks. Its integrated clamp can grip 19 or 21 longitudinally arranged anode carbon blocks per cycle for stacking or truck loading, and can also remove waste blocks and insert qualified blocks, with a stacking capacity of up to 9 layers.
The crane features dual-drive for bridge travel and adopts variable frequency control combined with PLC. All crane operations are performed from the operator's cab, which is equipped with an adjustable air conditioning system for heating and cooling.
contact us for more information!
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Product Characteristic
1.With PLC as the core, it integrates laser positioning (stacking position recognition), barcode/RFID scanning (carbon block traceability), and a human-machine interface (operation and monitoring). It supports manual/automatic mode switching and can be interconnected with the factory MES system.

2.Hoisting and traveling mechanisms feature variable frequency speed control, low noise, low energy consumption, smooth operation, and a speed regulation range of 1:10, ensuring energy saving and consumption reduction.

3.The specialized clamp (mechanically or hydraulically driven) features a contour-matching design that conforms to the carbon block surface. It is equipped with adjustable clamping force (to prevent crushing of carbon blocks), anti-tilt cushioning functionality, and, in some models, rotational fine-tuning to accommodate deviations in carbon block placement.
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop
Customized Anode Carbon Stacking Overhead Crane Hydraulic Lifting Equipment for Aluminum Smelter Carbon Plant Workshop

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.
