Single Girder Overhead Crane

Name: Single Girder Overhead Crane
Brand: ZEHUA
Price: 9 USD

Buy cheap Single Girder Overhead Crane product

Max. Lifting Load : 1t 1000kg 2t 3t 5t 6t 8t 10t 12t 15t

Place of Origin : Henan, China

Brand Name : ZEHUA

Warranty : 1 Year

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Application : widely

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Max. Lifting Height : 15 meters(49.21ft)

Span : 7m 10m 15m 20m 25m 30m 32m

Make : ZEHUA

MOQ : 1 set

Weight (KG) : 500000 kg(1102311.31lb)

Price : $9,000-10,000 / set

Power : 50 Hz

Contact Now

Single Girder European Overhead Crane

HD Europe standard single Girder overhead crane is our new designed crane for the low workshop and high lifting height demands. It has many advantages such as: Strong rigidity, light dead weight, outstanding structure design, etc. It could save your factory space and investment effectively. Its technology is advanced and design is based on international standard: DIN (Germany), FEM(Europe), and ISO (International). Its particular and special travelling structure is your best choice.

HD electric single girder overhead crane could be widely used to handle materials in many industries' workshop and warehouse. such as machinery manufacture. warehouse. logistic. food. paper making, electronics industries workshop and other material handling situations. The lifting hoist adopts M5 working class with double lifting speed. motor with ABM German brand motor. Travelling motor uses SEW European brand in one motor gear motors. Cross and long traveling are variable travelling speed. Electric parts adopt Siemens brand. The protection class is IP 54 high class. The working class can reach to A5/M5 class under ISO standard.

contact us for more information！

Overhead Crane Features:

1). Single welding box girder
2). DIN/FEM standard deflection
3). Whole length CNC cutting for complete web plate, high deflection accuracy
4). High quality automatic welding and NDT inspection
5). Shot-blasting Sa2.5 for complete girder after welding, stress release
6). High tension bolts mounting between girder and legs, life time safety connection
7). Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55
8). High protection class IP55, F class, 40% ED
9). Excellent driving properties, stepless control, smoothly moving
10). All hoist and crane movements are independent and can be run simultaneously.
11). Weihua independent core technology in WHL type wire rope electric hoist.

Product Paramenters

Lifting Capacity（t）	1	2	3	5	10
Span(m)	10.5 13.5 16.5 19.5 22.5 25.5
Lifitng Height(m)	6/9/12					6/9/12
Work Duty	A5					A5
Lifting Speed(m/min)	5/0.8					5/0.8
Trolley Travelling Speed(m/min)	2-20					2-20
Crane Travelling Speed(m/min)	3-30					3-30

Main Girder

Welding structure of steel plate and I-steel with technology: One-off forming U shaped groove

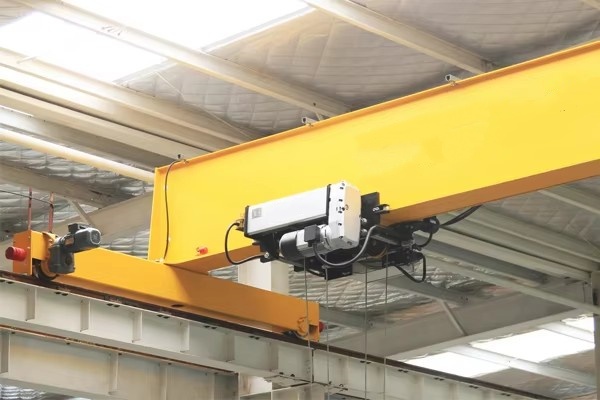

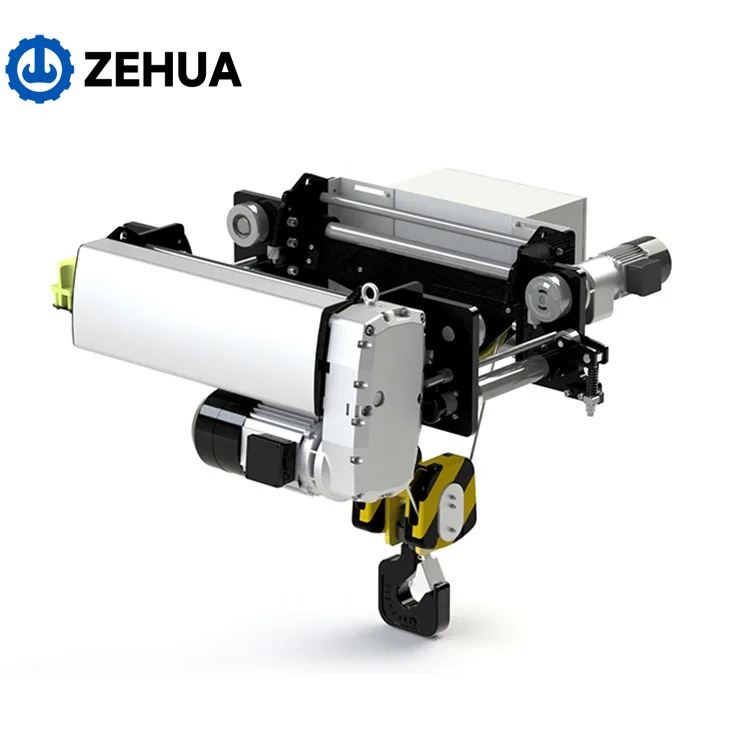

Electric Hoist

Capacity: 0.25-32t Lifting height: >3m Usage: Workshop, mines, habour etc.

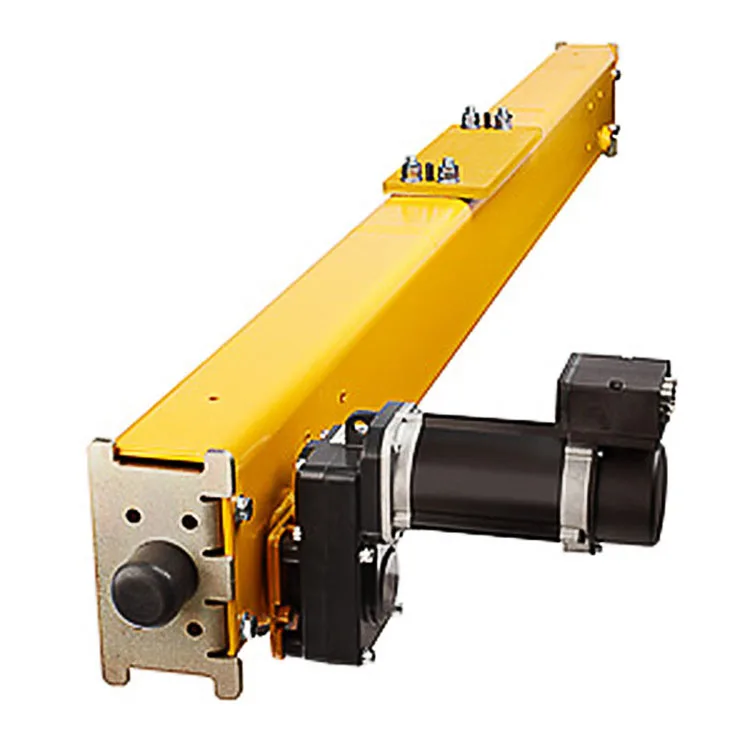

End Girder

The end girder is connected with the main girder by dolts and nuts for easy transportation and installtion.

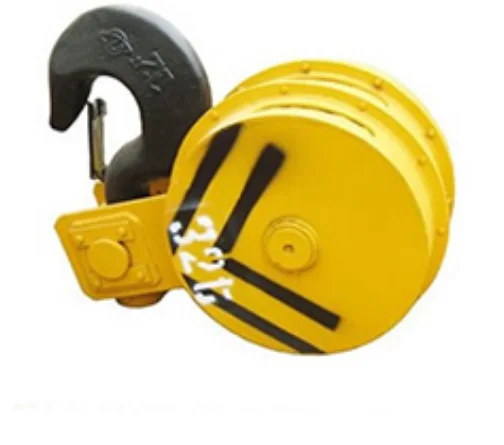

Hook

Capacity: 1-450t

Type: Single hook, double hook

Material: forgings.

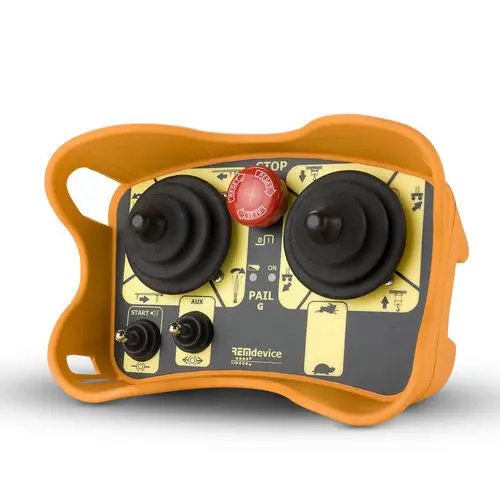

Wireless Remote Control

Model: Buttons/RockerSpeed: Single speed, double speed. VFD control

Wheels

Process: Casting, rough machining, QT, finish machiningMaterial: forging

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.

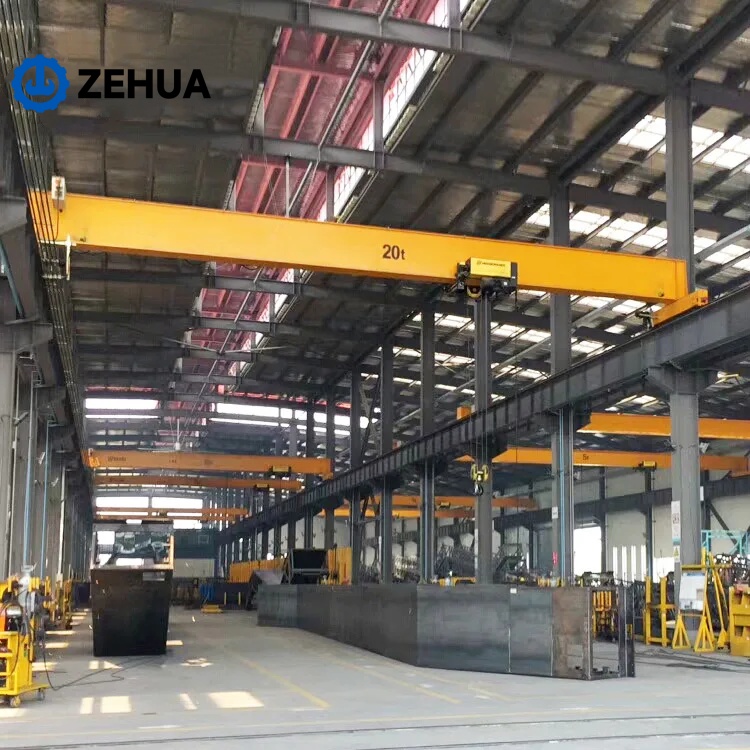

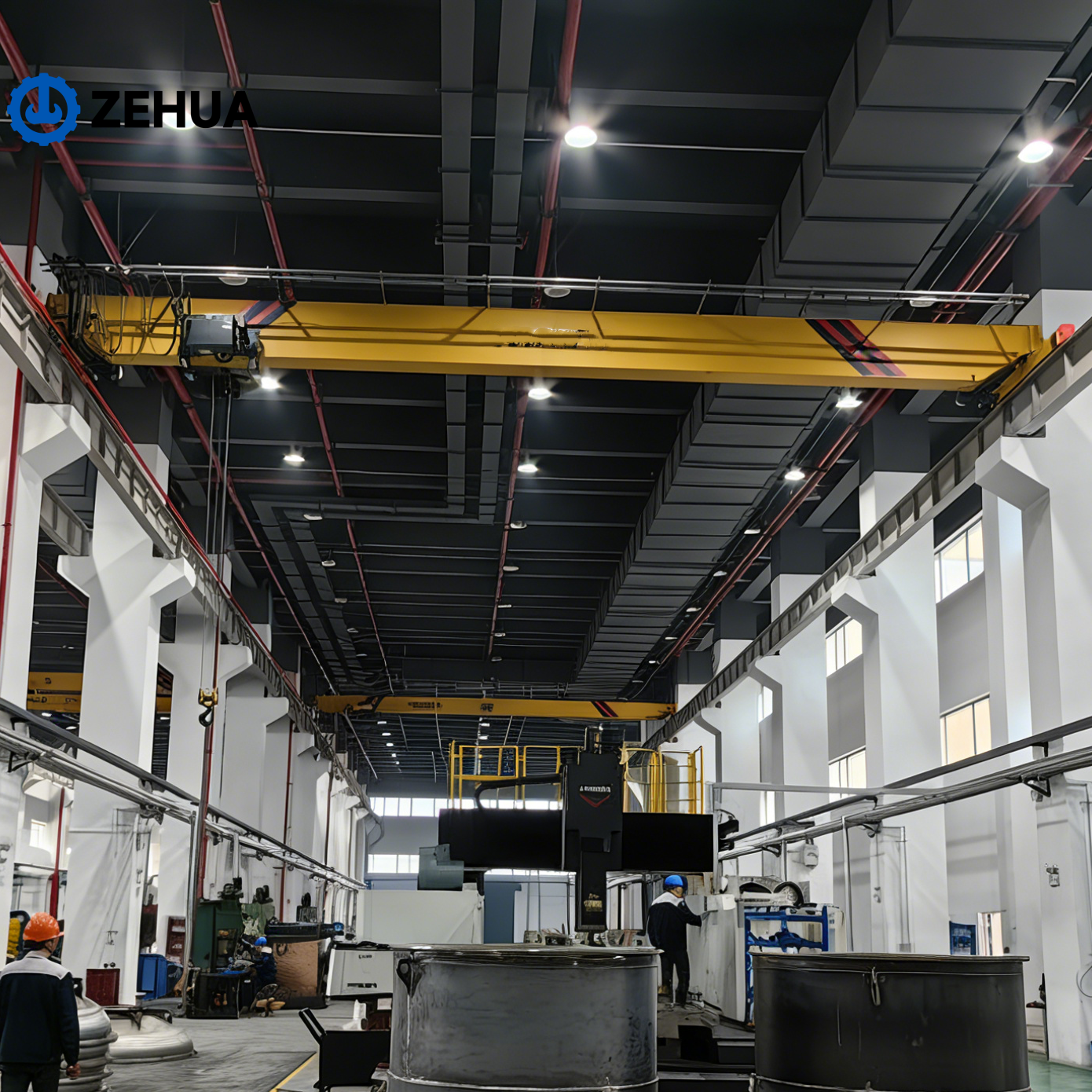

Single Girder Overhead Crane Images
