Zehua European Type Double Girder Gantry Crane Customizable Heavy Duty Port Warehouse Lifting Equipment

Name: Zehua European Type Double Girder Gantry Crane Customizable Heavy Duty Port Warehouse Lifting Equipment
Brand: ZEHUA
Price: 190 USD

Buy cheap Zehua European Type Double Girder Gantry Crane Customizable Heavy Duty Port Warehouse Lifting Equipment product

Span : accustomised

Application : WIDELY

Rated Lifting Moment : other

MOQ : 1 set

Machinery Test Report : Provided

Place of Origin : Henan, China

Weight (KG) : 50000 kg(110231.13lb)

Video outgoing-inspection : Provided

Rated Loading Capacity : 100 ton, 20 Ton, 15 Ton, 10 Ton, 2 Ton, 1 Ton, 5TON, 5 Ton

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Make : ZEHUA

Price : $190,000-200,000 / set

Max. Lifting Height : 200 m(656.17ft)

Warranty : 1 Year

Brand Name : ZEHUA

Contact Now

Zehua European Type Double Girder Gantry Crane Customizable Heavy Duty Port Warehouse Lifting Equipment

European Double Girder Gantry Crane

The European-style double girder gantry crane is currently a widely used type of lifting equipment. Its hoisting mechanism consists of an electric hoist, and it operates by traveling on ground rails supported by two legs. It is designed for intermittent and repetitive handling and transportation of materials and equipment in general operating environments, offering functions such as vertical lifting, as well as longitudinal and lateral movement. The lifting attachments are available in forms such as hooks, grabs, and electromagnets to meet users' requirements for handling various types of materials. The outer sides of the legs can be equipped with cantilever arms to facilitate the transfer of goods from within the span to the outside, although it can also be configured without cantilevers. The working class ranges from A3 to A5.

contact us for more information！

Core Advantages

1.Hoisting and traveling mechanisms feature variable frequency speed control, low noise, low energy consumption, smooth operation, slow speed under heavy load, and fast speed under light load, with a speed regulation range of 1:10 for energy saving and consumption reduction. The lightweight design reduces the overall weight by 15% to 30% compared to traditional cranes, decreases the maximum wheel load by 20% to 35%, and lowers energy consumption by 10% to 20%.

2.Equipped with a high-precision drive system and speed regulation devices, it enables smooth speed adjustment for actions such as hoisting and traveling. When lifting heavy loads, it ensures precise control of speed and positioning, minimizing impacts and sway, thereby preventing damage to surrounding equipment.

3.The electrical connections utilize internationally standardized heavy-duty aviation plugs with an IP55 protection rating. The electrical switching for grabs and electromagnets enables quick plug-and-play operation, ensuring reliable and secure connections.

Product Paramenters

Lifting Capacity （ton）	Main hook	5	10	20	32	50
Lifting Capacity （ton）		Aux hook	/			5	5	10
Span（m）			18 22 26 30 35
Lifting Height（m）			10	10/12
Working Duty			A5
Speed(m/min)	Main Hook	0.88-8.8	0.73-7.3	0.62-6.2	0.5-5	0.4-4
		Aux Hook	/			0.88-8.8			0.73-7.3
		Trolley Travelling	2.6-26			3.2-32	3.0-30
		Crane Travelling	3.6-36	3.6-36 4.0-40	4.0-40	3.6-36	4.0-40
Extreme Dimension(mm)	C1	1300	1500	2000
Extreme Dimension(mm)		C2	1000	1200	1700	2000
Maximum Wheel Load（kn）		95,105,115,125,135	130,140,150,160,170	100,110,120,125,135	160,165,170,180,190	220,225,230,240,255
Power Supply	3phase AC 50Hz 380V

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.

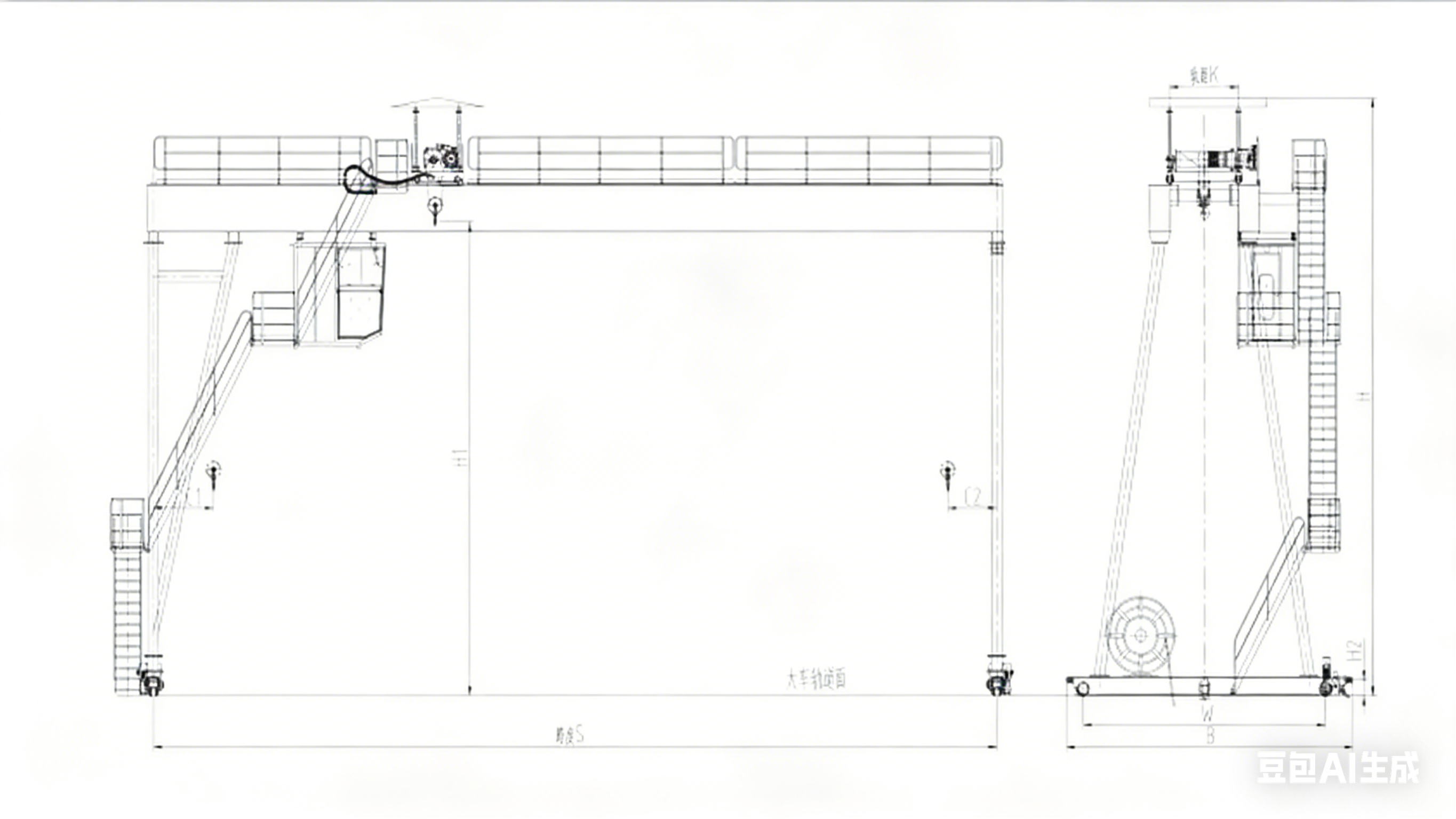

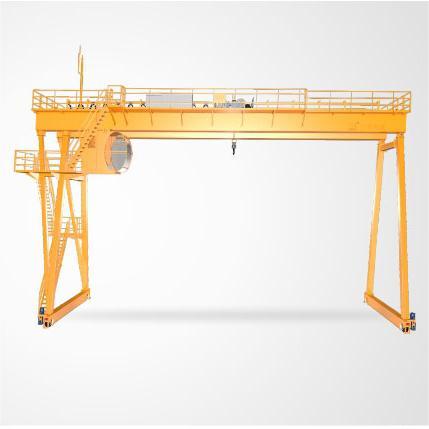

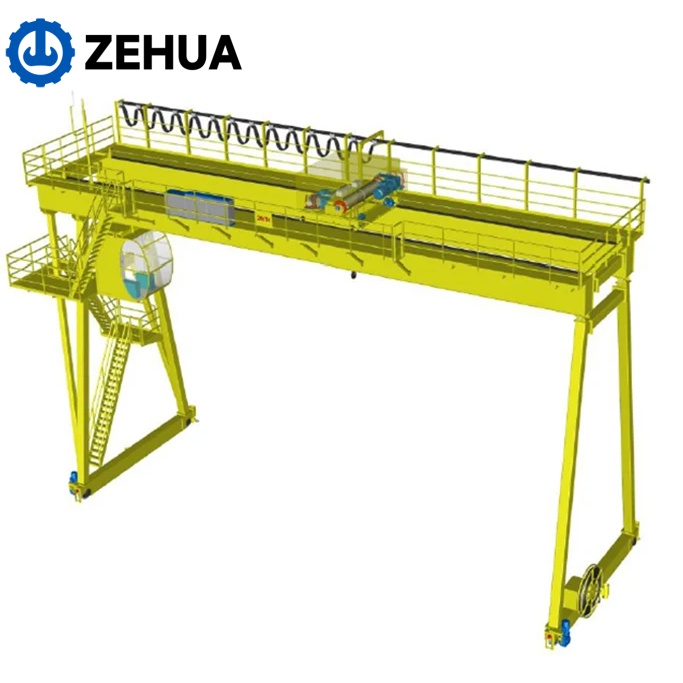

Zehua European Type Double Girder Gantry Crane Customizable Heavy Duty Port Warehouse Lifting Equipment Images
